GT series

General & Features.

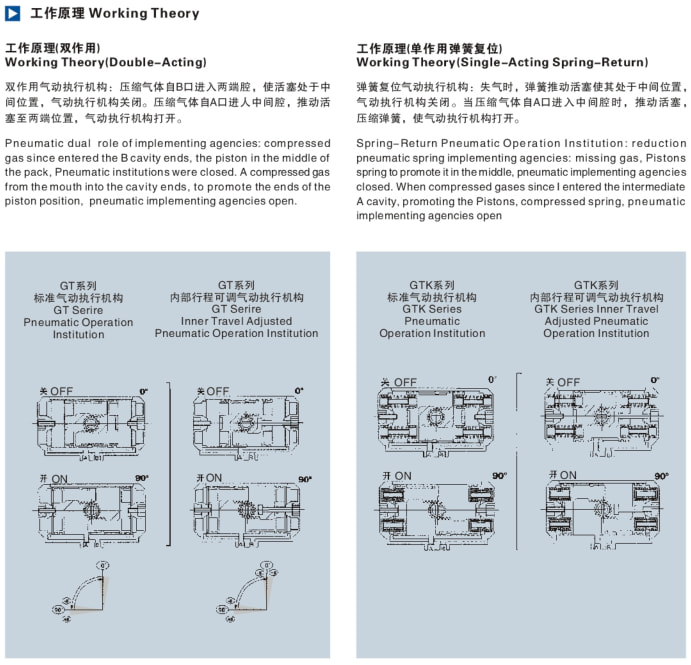

GT Series pneumatic actuator is compressed air-driven,piston rack, and the mechanical transmission gear, angle formed by the output torque pneumatic actuators.Product is of small appearance, light weight, high-perfomance and long service life. lt is divided into double acting and single acting (Spring Return).Apply to the itinerary angle control valve(ball valve, butterfly valve)switching and adjustments and also can be used for other needs Rotary occasions.

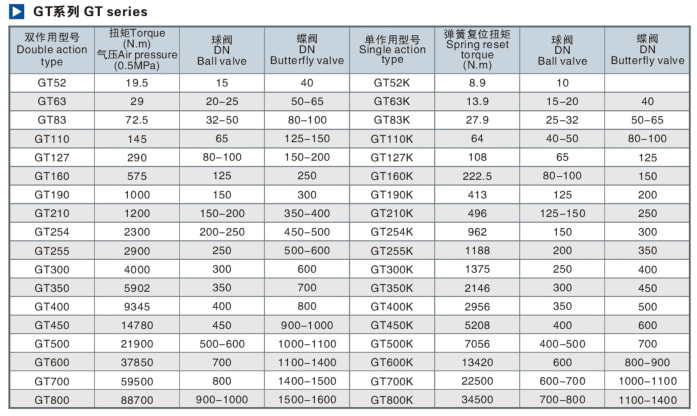

Note: 1.The pneumatic and configuration of the valve with a soft sealing ball valves pressure for PN1.6MPA, soft sealing butterfly valve for PN1.0 MPA pressure

2. Such as the user to provide valve please according to the company the torque and

 provide for the valve by combining the actual torque accordingly.

3. The air cylinder to 0.5MPA above air pressure. If users with the valve thrust and

 air pressure, my company to new configuration of the cylinder.
