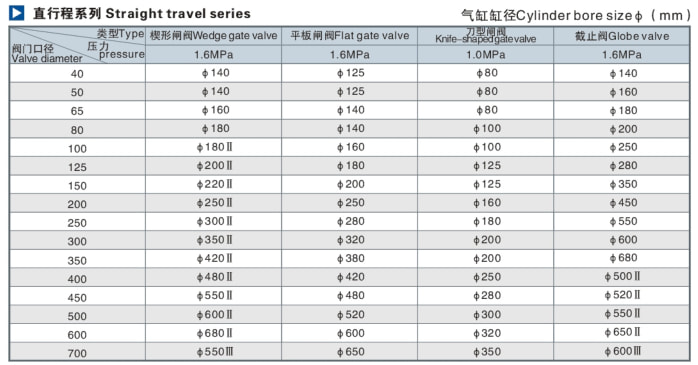

Linear Stroke Series

Note: 1.The pneumatic and configuration of the valve with a soft sealing ball valves pressure for PN1.6MPA, soft sealing butterfly valve for PN1.0 MPA pressure

2. Such as the user to provide valve please according to the company the torque and

 provide for the valve by combining the actual torque accordingly.

3. The air cylinder to 0.5MPA above air pressure. If users with the valve thrust and

 air pressure, my company to new configuration of the cylinder.
